JS Grid Coupling

Name: Customized JS Grid Coupling Manufacturers, Suppliers - Wholesale Service - KFX
Brand: Xiamen Kangfuxiang Machinery Co., Ltd
SKU: 126277752

1.Horizontal split cover design,ideal for limited space
2.Allows easy access to the grid spring
3.Well suited for reversing applications
4.Lightweight die-cast aluminum grid cover
5.Designed for ease of maintenance and grid spring replacement
6.High tensile grid springs ensure superior coupling performance and longer coupling life
7.Interchangeable with industry standard grid couplings

Send Inquiry

Description

JS grid coupling

JS Grid Coupling

Principles

Positive protection against the damaging effects of shock loads, impact loads and vibration.

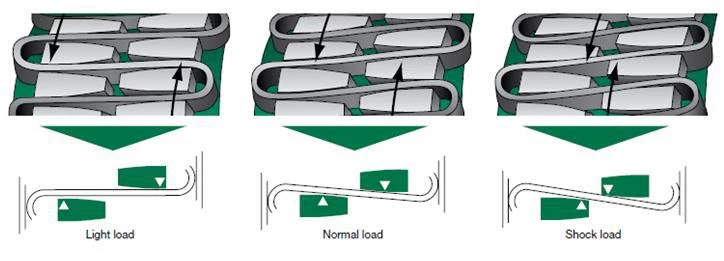

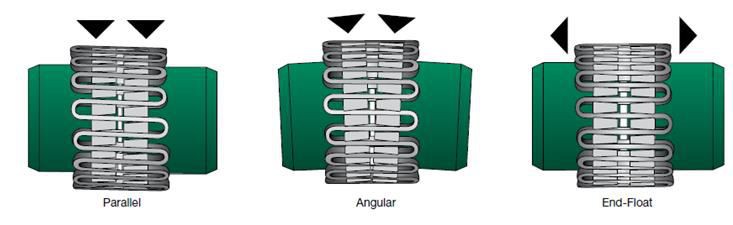

XiamenKFX grid coupling is torsionally flexible. The circumferential flexibility is progressive due to the curved profile of the grooves – ‘state-of-the-art’ in resilient coupling design.

JS Grid Coupling

Limited End-Float kits are available on request.

JS Grid Coupling

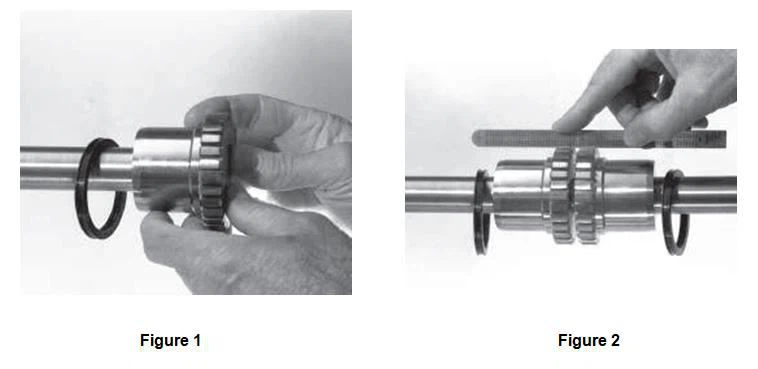

Installation

JS Grid Coupling

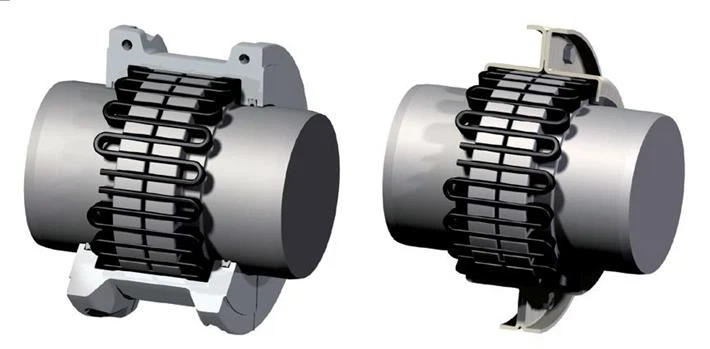

Features of JS grid coupling:

1.Horizontal split cover design,ideal for limited space

2.Allows easy access to the grid spring

3.Well suited for reversing applications

4.Lightweight die-cast aluminum grid cover

5.Designed for ease of maintenance and grid spring replacement

6.High tensile grid springs ensure superior coupling performance and longer coupling life

7.Interchangeable with industry standard grid couplings

Type	Nominal torque T_n/ N·m	Max speed [n]/ r·min^-1	Bore diameter d	L	L₂	D	D₁	C	Mass m /kg	Moment of inertia I/ kg·m²
JS1	45	4500	18、19	47	66	95	—	3	1.91	0.00141
20、22、24
25、28
JS2	140	4500	22、24	47	68	105	2.59	0.00223
25、28
30、32、35
JS3	224	25、28	50	70	115	3.36	0.00327
30、32、35、38
40、42
JS4	400	32、35、38	60	81	130	5.44	0.00727
40、42、45、48、50
JS5	630	4350	40、42、45、48、50、55、56	63	94	150	7.26	0.0119
JS6	900	4125	48、50、55、56	76	97	160	10.4	0.0185
60、63、65
JS7	1800	3600	55、56	89	115	190	17.7	0.0451
60、63、65、70、71、75
80
JS8	3150	65、70、71、75	98	122	210	25.4	0.0787
80、85、90、95
JS9	5600	2440	75	120	155	250	5	42.2	0.178
80、85、90、95
100、110
JS10	8000	2250	85、90、95	127	162	270	54.4	0.27
100、110、120
JS11	12500	2025	90、95	149	191	310	6	81.2	0.514
100、110、120、125
130、140
JS12	18000	1800	110、120、125	162	195	346	121	0.989
130、140、（150）
160、170
JS13	25000	1600	120、125	184	201	384	—	178	1.85
130、140、150	6
160、170、180
190、200
JS14	35500	1500	140、150	183	271	450	391	227	3.49
160、170、180
190、200
JS15	50000	1300	160、170、180	198	278	500	431	309	5.82
190、200、220
240
JS16	6300	1200	180	216	307	566	487	448	10.4
190、200、220
240、250、260
280
JS17	90000	1100	200、220	239	321	630	555	619	18.3
240、250、260
280、300
JS18	125000	1000	240、250、260	260	325	675	608	776	26.1
280、300、320
JS19	160000	900	280、300、320	280	355	756	660	1057	43.5
340、360
JS20	224000	820	300、320	305	432	845	751	13	1424	75.5
340、360、380
JS21	315000	730	320	325	490	920	822	1785	113
340、360、380
400、420
JS22	400000	680	340、360、380	345	546	1000	905	2267	175
400、420、440、450
JS23	500000	630	360、380	368	648	1087	—	2950	339
400、420、440、450、460、480
JS24	630000	580	400、420、440、450、460	401	698	1180	3833	524
JS25	800000	540	420、440、450、460、480、500	432	762	1260	4682	711
