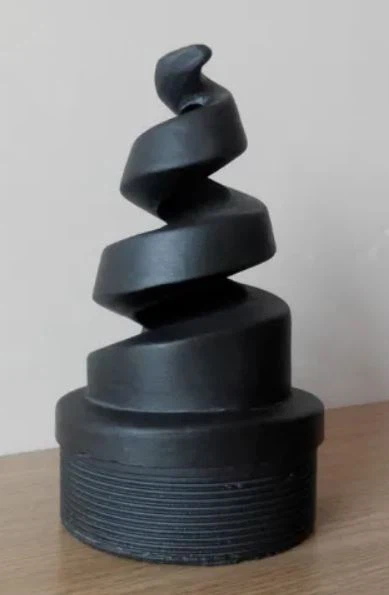

Silicon Carbide Spiral Solid Cone Nozzle

Silicon Carbide Spiral Solid Cone Nozzle

Silicon Carbide Spiral Solid Cone Nozzle

density:3.02

color：black grey

application temperature：1380

Transport Package：Wooden Case

Silicon Carbide Spiral Solid Cone Nozzle

Desulfurization of spray nozzle is the key components of a large power plant absorption tower,boiler, steel sintering desulfurization desulfurization dusting of complete sets of equipment. The Material has reaction sintered silicon carbide and stainless steel 316 I, etc. SISIC desulfurizationnozzle has the advantages of high strength, high hardness, strong corrosion resistance, high wearresistance, high temperature resistance and other excellent properties. The desulfurization nozzle, ofour company has good spray droplet distribution is uniform, smooth flow channel, no blockingphenomenon. At present, there are many kinds of spiral solid cone type, vortex hollow cone typevortex solid cone type, liquid column type and so on.
The spray angle refers to the cone angle of the liquid film cone formed after the slurryleaves the nozzle port, and is mainly affected by factors such as the nozzle hole radius, theradius of the rotating chamber, and the radius of the slurry inlet. When selecting the sprayangle, it must be combined with the nozzle arrangement in the tower to ensure uniformcoverage and coverage within the tower, usually requiring a spray angle of 90° to 120°.

The nozzle pressure drop of the nozzle refers to the pressure loss generated when theslurry passes through the nozzle passage, which is mainly related to factors such as nozzlestructure parameters and slurry viscosity. The greater the pressure drop, the greater thesystems energy consumption. Typical nozzle system pressure drop is typically between 0.05and 0.15 MPa.
The nozzle flow rate refers to the volume flow rate through the nozzle per unit ume, and thenozzle flow rate is related to the nozzle pressure drop and the nozzle structure parametersUnder the same nozzle pressure drop condition, the larger the nozzle hole radius, the larger the nozzle flow rate.

The flow rate of the nozzle will ultimately affect the economics of the desulfurization system.In a given absorption tower, the nozzle with a large flow rate can reduce the total number ofnozzles required, thereby reducing the cost of the system. The limitation of the large flownozzle is small and the anti-clogging performance is good. This can effectively save operatingand maintenance costs. However, the use of large flow nozzles has also been sacrificed, andthe droplet size is increased, so the maximum flow rate acceptable for different nozzles islimited by the atomization effect of such nozzles.

Xiamen Kangfuxiang Machinery provides parts design, prototyping, mold design, mold production, mass production and internal assembly services. We work with many customers all over the world and have a deep understanding of the mold industry. Our experience ranges from simple designs to challenging technical parts.

1. who are we?
We are based in Fujian, China, start from 2007,sell to Western Europe(25.00%),North America(25.00%),South America(10.00%),Domestic Market(10.00%),Mid East(8.00%),Africa(5.00%),Eastern Europe(5.00%),Central America(4.00%),South Asia(3.00%),Northern Europe(3.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
harware parts,machine part,machine equipment accessories,CNC machining parts,aluminium parts

4. why should you buy from us not from other suppliers?
Strong Rearch and development, design and manufacture Precise machining equipemnt 200pcs Non-standard and standard hardware and machine parts are available High quality and most competitive prices

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

Hot Tags: silicon carbide spiral solid cone nozzle, manufacturers, suppliers, customized, wholesale, adjustable ball clip eyelet nozzle, clip clamp nozzle, Teflon material spiral nozzle, clamp spiral jet nozzle, Cooling Tower Spray Nozzle, Flat Fan Spray Nozzle
