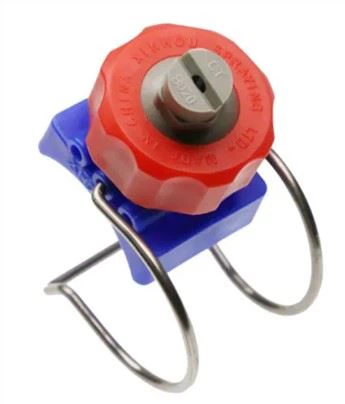

Plastic Quick-Connect Dismantling Adjustable Flat Fan Spray Clamp Nozzle
Feature:Low Pressure
Condition:New
Customized:Non-Customized
Description
Type: | Nozzle |
Feature: | Low Pressure |
Condition: | New |
Customized: | Non-Customized |
Product Name: | Adjustable Flat Fan Spray Clamp Nozzle |
Material: | PP+ Ss Clip Eyelet |
Spray Pattern:Flat Fan, Full Cone, Hollow Cone
Spray Angle:65-80 Degrees
Clamp:3/4′′, 1′′, 1-1/4′′, 1-1/2′′, 2′′
Color:Grey and Yellow
Operating Pressure:Within 2 Bar
Product name: | Plastic adjustable ball clip-eyelet pipe clamp water jet spray nozzle for washing |
Material | Wear-resistant pp and 304 stainless steel |
Clamp size | 3/4'',1'', 1-1/4'', 1-1/2'', 2'' |
Spray pattern | Flat fan ,full cone, hollow cone |
Spray angle | 65-80 degrees |
Pressure | 0.3-2bar |
Application | 1. Metal Cleaning 2. Degreasing and phosphatizing in surface treatmen 3. other low pressure application.cooling.washing |
Color | Grey and Yellow |
Advantage | Anti-clogging. Wear-resistant |
Feature:
This series nozzles are made up of base with clamp,detachable screw cap,adjustable head,
the base with 3 holes for single and double clamp.
The water inlet Diameter is 14-20mm.
Different sizes clamp are avaliable for different pipe
the spray head is adjustable, can change the spray direction optionally
no leak under 7kg pressure
JTCCO Nozzles are injection molded from custom-blended polypropylene, a cost-effective
material that is corrosion and heat-resistant and impervious to most chemicals.
The tip design resists clogging and buildup due to its smooth shape and low coefficient of friction.
A wide variety of JTCCO Clamp-On Nozzles are available to suit your application and are
colour-coded for easy identification (see table below).
All nozzles are available with a Single-Spring or an optional Double-Spring configuration for
pressures over 60 psi (4.0 bar).
All nozzles are available in three spigot sizes, to fit 9/16", 21/32" or 13/16" (14 mm, 16mm
and 18mm) diameter holes in the riser.
